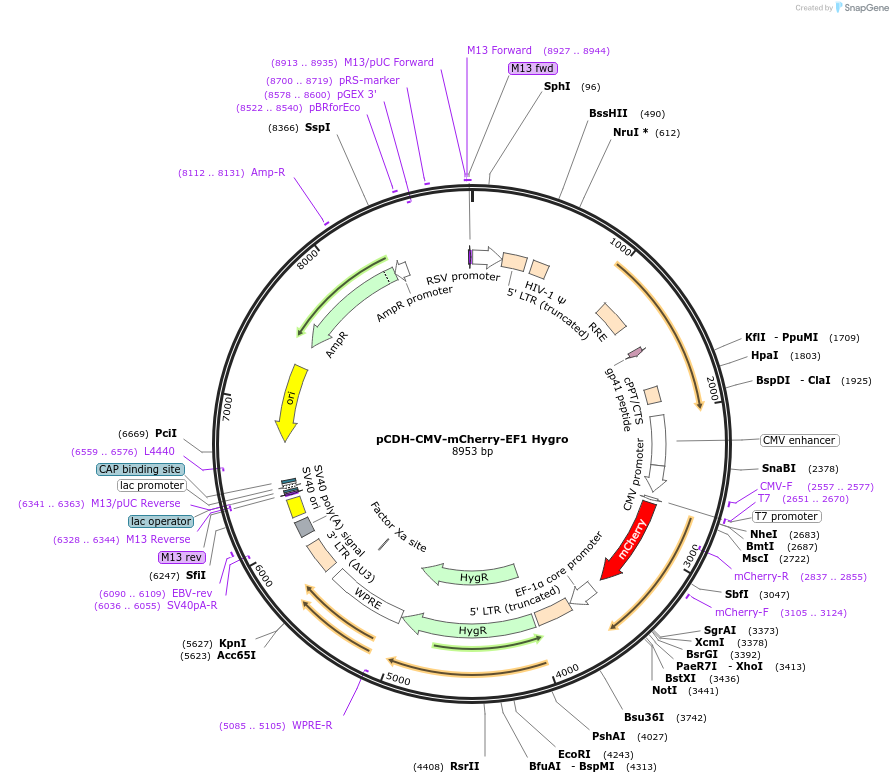

pCDH-CMV-mCherry-EF1 Hygro

LOCUS        pCDH-CMV-mCherry-EF1 Hygro        8953 bp    DNA     circular SYN 14-APR-2025
DEFINITION  express mCherry.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8953)
  TITLE     Emory Custom Cloning Core Plasmids - Oskar Laur
REFERENCE   2  (bases 1 to 8953)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Apr 14, 2025 from SnapGene Server 8.0.1
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"
COMMENT     Sequence Label: pCDH-CMV-mCherry-EF1 Hygro
FEATURES             Location/Qualifiers
     source          1..8953
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        6..232
                     /label=RSV promoter
                     /note="Rous sarcoma virus enhancer/promoter"
     LTR             233..413
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    460..585
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1078..1311
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     CDS             1496..1540
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
                     /translation="KNEQELLELDKWASL"
     misc_feature    1807..1923
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     enhancer        2023..2402
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2403..2606
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     2557..2577
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     2651..2670
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        2651..2669
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             2692..3399
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(2837..2855)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     3105..3124
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     promoter        3480..3691
                     /label=EF-1-alpha core promoter
                     /note="core promoter for human elongation factor
                     EF-1-alpha"
     LTR             3704..3972
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from human
                     T-cell leukemia virus (HTLV) type 1"
     CDS             4000..5025
                     /codon_start=1
                     /product="hygromycin B phosphotransferase"
                     /label=HygR
                     /note="confers resistance to hygromycin"
                     /translation="MKKPELTATSVEKFLIEKFDSVSDLMQLSEGEESRAFSFDVGGRG
                     YVLRVNSCADGFYKDRYVYRHFASAALPIPEVLDIGEFSESLTYCISRRAQGVTLQDLP
                     ETELPAVLQPVAEAMDAIAAADLSQTSGFGPFGPQGIGQYTTWRDFICAIADPHVYHWQ
                     TVMDDTVSASVAQALDELMLWAEDCPEVRHLVHADFGSNNVLTDNGRITAVIDWSEAMF
                     GDSQYEVANIFFWRPWLACMEQQTRYFERRHPELAGSPRLRAYMLRIGLDQLYQSLVDG
                     NFDDAAWAQGRCDAIVRSGAGTVGRTQIARRSAAVWTDGCVEVLADSGNRRPSTRPRAK
                     E"
     CDS             4000..5025
                     /codon_start=1
                     /gene="aph(4)-Ia"
                     /product="aminoglycoside phosphotransferase from E. coli"
                     /label=HygR
                     /note="confers resistance to hygromycin"
                     /translation="MKKPELTATSVEKFLIEKFDSVSDLMQLSEGEESRAFSFDVGGRG
                     YVLRVNSCADGFYKDRYVYRHFASAALPIPEVLDIGEFSESLTYCISRRAQGVTLQDLP
                     ETELPAVLQPVAEAMDAIAAADLSQTSGFGPFGPQGIGQYTTWRDFICAIADPHVYHWQ
                     TVMDDTVSASVAQALDELMLWAEDCPEVRHLVHADFGSNNVLTDNGRITAVIDWSEAMF
                     GDSQYEVANIFFWRPWLACMEQQTRYFERRHPELAGSPRLRAYMLRIGLDQLYQSLVDG
                     NFDDAAWAQGRCDAIVRSGAGTVGRTQIARRSAAVWTDGCVEVLADSGNRRPSTRPRAK
                     E"
     misc_feature    5032..5620
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(5085..5105)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(5503..5514)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5694..5927
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5999..6120
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(6036..6055)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     6090..6109
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      6160..6295
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6328..6344)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(6328..6344)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(6341..6363)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    6352..6368
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(join(6376..6382,6383..6400,6401..6406))
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6421..6442
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(6559..6576)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(6730..7318)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(join(7489..8280,8281..8349))
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     8112..8131
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(8350..8454)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     8522..8540
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     primer_bind     complement(8578..8600)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     8700..8719
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     8913..8935
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     8927..8944
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     8928..8944
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacataa acgggtctct
      241 ctggttagac cagatctgag cctgggagct ctctggctaa ctagggaacc cactgcttaa
      301 gcctcaataa agcttgcctt gagtgcttca agtagtgtgt gcccgtctgt tgtgtgactc
      361 tggtaactag agatccctca gaccctttta gtcagtgtgg aaaatctcta gcagtggcgc
      421 ccgaacaggg acttgaaagc gaaagggaaa ccagaggagc tctctcgacg caggactcgg
      481 cttgctgaag cgcgcacggc aagaggcgag gggcggcgac tggtgagtac gccaaaaatt
      541 ttgactagcg gaggctagaa ggagagagat gggtgcgaga gcgtcagtat taagcggggg
      601 agaattagat cgcgatggga aaaaattcgg ttaaggccag ggggaaagaa aaaatataaa
      661 ttaaaacata tagtatgggc aagcagggag ctagaacgat tcgcagttaa tcctggcctg
      721 ttagaaacat cagaaggctg tagacaaata ctgggacagc tacaaccatc ccttcagaca
      781 ggatcagaag aacttagatc attatataat acagtagcaa ccctctattg tgtgcatcaa
      841 aggatagaga taaaagacac caaggaagct ttagacaaga tagaggaaga gcaaaacaaa
      901 agtaagacca ccgcacagca agcggccact gatcttcaga cctggaggag gagatatgag
      961 ggacaattgg agaagtgaat tatataaata taaagtagta aaaattgaac cattaggagt
     1021 agcacccacc aaggcaaaga gaagagtggt gcagagagaa aaaagagcag tgggaatagg
     1081 agctttgttc cttgggttct tgggagcagc aggaagcact atgggcgcag cgtcaatgac
     1141 gctgacggta caggccagac aattattgtc tggtatagtg cagcagcaga acaatttgct
     1201 gagggctatt gaggcgcaac agcatctgtt gcaactcaca gtctggggca tcaagcagct
     1261 ccaggcaaga atcctggctg tggaaagata cctaaaggat caacagctcc tggggatttg
     1321 gggttgctct ggaaaactca tttgcaccac tgctgtgcct tggaatgcta gttggagtaa
     1381 taaatctctg gaacagattt ggaatcacac gacctggatg gagtgggaca gagaaattaa
     1441 caattacaca agcttaatac actccttaat tgaagaatcg caaaaccagc aagaaaagaa
     1501 tgaacaagaa ttattggaat tagataaatg ggcaagtttg tggaattggt ttaacataac
     1561 aaattggctg tggtatataa aattattcat aatgatagta ggaggcttgg taggtttaag
     1621 aatagttttt gctgtacttt ctatagtgaa tagagttagg cagggatatt caccattatc
     1681 gtttcagacc cacctcccaa ccccgagggg acccgacagg cccgaaggaa tagaagaaga
     1741 aggtggagag agagacagag acagatccat tcgattagtg aacggatctc gacggtatcg
     1801 gttaactttt aaaagaaaag gggggattgg ggggtacagt gcaggggaaa gaatagtaga
     1861 cataatagca acagacatac aaactaaaga attacaaaaa caaattacaa aattcaaaat
     1921 tttatcgata ctagtgatct ggcctccgcg ccgggttttg gcgcctcccg cgggcgcccc
     1981 cctcctcacg gcgagccgat gtacgggcca gatatacgcg ttgacattga ttattgacta
     2041 gttattaata gtaatcaatt acggggtcat tagttcatag cccatatatg gagttccgcg
     2101 ttacataact tacggtaaat ggcccgcctg gctgaccgcc caacgacccc cgcccattga
     2161 cgtcaataat gacgtatgtt cccatagtaa cgccaatagg gactttccat tgacgtcaat
     2221 gggtggagta tttacggtaa actgcccact tggcagtaca tcaagtgtat catatgccaa
     2281 gtacgccccc tattgacgtc aatgacggta aatggcccgc ctggcattat gcccagtaca
     2341 tgaccttatg ggactttcct acttggcagt acatctacgt attagtcatc gctattacca
     2401 tggtgatgcg gttttggcag tacatcaatg ggcgtggata gcggtttgac tcacggggat
     2461 ttccaagtct ccaccccatt gacgtcaatg ggagtttgtt ttggcaccaa aatcaacggg
     2521 actttccaaa atgtcgtaac aactccgccc cattgacgca aatgggcggt aggcgtgtac
     2581 ggtgggaggt ctatataagc agagctctct ggctaactag agaacccact gcttactggc
     2641 ttatcgaaat taatacgact cactataggg agacccaagc tggctagcac catggtgagc
     2701 aagggcgagg aggataacat ggccatcatc aaggagttca tgcgcttcaa ggtgcacatg
     2761 gagggctccg tgaacggcca cgagttcgag atcgagggcg agggcgaggg ccgcccctac
     2821 gagggcaccc agaccgccaa gctgaaggtg accaagggtg gccccctgcc cttcgcctgg
     2881 gacatcctgt cccctcagtt catgtacggc tccaaggcct acgtgaagca ccccgccgac
     2941 atccccgact acttgaagct gtccttcccc gagggcttca agtgggagcg cgtgatgaac
     3001 ttcgaggacg gcggcgtggt gaccgtgacc caggactcct ccctgcagga cggcgagttc
     3061 atctacaagg tgaagctgcg cggcaccaac ttcccctccg acggccccgt aatgcagaag
     3121 aagaccatgg gctgggaggc ctcctccgag cggatgtacc ccgaggacgg cgccctgaag
     3181 ggcgagatca agcagaggct gaagctgaag gacggcggcc actacgacgc tgaggtcaag
     3241 accacctaca aggccaagaa gcccgtgcag ctgcccggcg cctacaacgt caacatcaag
     3301 ttggacatca cctcccacaa cgaggactac accatcgtgg aacagtacga acgcgccgag
     3361 ggccgccact ccaccggcgg catggacgag ctgtacaagt ccggactcag atctcgagct
     3421 caagctatcc agcacagtgg cggccgcaag gatctgcgat cgctccggtg cccgtcagtg
     3481 ggcagagcgc acatcgccca cagtccccga gaagttgggg ggaggggtcg gcaattgaac
     3541 gggtgcctag agaaggtggc gcggggtaaa ctgggaaagt gatgtcgtgt actggctccg
     3601 cctttttccc gagggtgggg gagaaccgta tataagtgca gtagtcgccg tgaacgttct
     3661 ttttcgcaac gggtttgccg ccagaacaca gctgaagctt cgaggggctc gcatctctcc
     3721 ttcacgcgcc cgccgcccta cctgaggccg ccatccacgc cggttgagtc gcgttctgcc
     3781 gcctcccgcc tgtggtgcct cctgaactgc gtccgccgtc taggtaagtt taaagctcag
     3841 gtcgagaccg ggcctttgtc cggcgctccc ttggagccta cctagactca gccggctctc
     3901 cacgctttgc ctgaccctgc ttgctcaact ctacgtcttt gtttcgtttt ctgttctgcg
     3961 ccgttacaga tccaagctgt gaccggcgcc tacgtcgaca tgaaaaagcc tgaactcacc
     4021 gcgacgtctg tcgagaagtt tctgatcgaa aagttcgaca gcgtctccga cctgatgcag
     4081 ctctcggagg gcgaagaatc tcgtgctttc agcttcgatg taggagggcg tggatatgtc
     4141 ctgcgggtaa atagctgcgc cgatggtttc tacaaagatc gttatgttta tcggcacttt
     4201 gcatcggccg cgctcccgat tccggaagtg cttgacattg gggaattcag cgagagcctg
     4261 acctattgca tctcccgccg tgcacagggt gtcacgttgc aagacctgcc tgaaaccgaa
     4321 ctgcccgctg ttctgcagcc ggtcgcggag gccatggatg cgatcgctgc ggccgatctt
     4381 agccagacga gcgggttcgg cccattcgga ccgcaaggaa tcggtcaata cactacatgg
     4441 cgtgatttca tatgcgcgat tgctgatccc catgtgtatc actggcaaac tgtgatggac
     4501 gacaccgtca gtgcgtccgt cgcgcaggct ctcgatgagc tgatgctttg ggccgaggac
     4561 tgccccgaag tccggcacct cgtgcacgcg gatttcggct ccaacaatgt cctgacggac
     4621 aatggccgca taacagcggt cattgactgg agcgaggcga tgttcgggga ttcccaatac
     4681 gaggtcgcca acatcttctt ctggaggccg tggttggctt gtatggagca gcagacgcgc
     4741 tacttcgagc ggaggcatcc ggagcttgca ggatcgccgc ggctccgggc gtatatgctc
     4801 cgcattggtc ttgaccaact ctatcagagc ttggttgacg gcaatttcga tgatgcagct
     4861 tgggcgcagg gtcgatgcga cgcaatcgtc cgatccggag ccgggactgt cgggcgtaca
     4921 caaatcgccc gcagaagcgc ggccgtctgg accgatggct gtgtagaagt actcgccgat
     4981 agtggaaacc gacgccccag cactcgtccg agggcaaagg aataggtcga caatcaacct
     5041 ctggattaca aaatttgtga aagattgact ggtattctta actatgttgc tccttttacg
     5101 ctatgtggat acgctgcttt aatgcctttg tatcatgcta ttgcttcccg tatggctttc
     5161 attttctcct ccttgtataa atcctggttg ctgtctcttt atgaggagtt gtggcccgtt
     5221 gtcaggcaac gtggcgtggt gtgcactgtg tttgctgacg caacccccac tggttggggc
     5281 attgccacca cctgtcagct cctttccggg actttcgctt tccccctccc tattgccacg
     5341 gcggaactca tcgccgcctg ccttgcccgc tgctggacag gggctcggct gttgggcact
     5401 gacaattccg tggtgttgtc ggggaaatca tcgtcctttc cttggctgct cgcctgtgtt
     5461 gccacctgga ttctgcgcgg gacgtccttc tgctacgtcc cttcggccct caatccagcg
     5521 gaccttcctt cccgcggcct gctgccggct ctgcggcctc ttccgcgtct tcgccttcgc
     5581 cctcagacga gtcggatctc cctttgggcc gcctccccgc ctggtacctt taagaccaat
     5641 gacttacaag gcagctgtag atcttagcca ctttttaaaa gaaaaggggg gactggaagg
     5701 gctaattcac tcccaacgaa gataagatct gctttttgct tgtactgggt ctctctggtt
     5761 agaccagatc tgagcctggg agctctctgg ctaactaggg aacccactgc ttaagcctca
     5821 ataaagcttg ccttgagtgc ttcaagtagt gtgtgcccgt ctgttgtgtg actctggtaa
     5881 ctagagatcc ctcagaccct tttagtcagt gtggaaaatc tctagcagta gtagttcatg
     5941 tcatcttatt attcagtatt tataacttgc aaagaaatga atatcagaga gtgagaggaa
     6001 cttgtttatt gcagcttata atggttacaa ataaagcaat agcatcacaa atttcacaaa
     6061 taaagcattt ttttcactgc attctagttg tggtttgtcc aaactcatca atgtatctta
     6121 tcatgtctgg ctctagctat cccgccccta actccgccca tcccgcccct aactccgccc
     6181 agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag
     6241 gccgcctcgg cctctgagct attccagaag tagtgaggag gcttttttgg aggcctagac
     6301 ttttgcagag accaaattcg taatcatgtc atagctgttt cctgtgtgaa attgttatcc
     6361 gctcacaatt ccacacaaca tacgagccgg aagcataaag tgtaaagcct ggggtgccta
     6421 atgagtgagc taactcacat taattgcgtt gcgctcactg cccgctttcc agtcgggaaa
     6481 cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat
     6541 tgggcgctct tccgcttcct cgctcactga ctcgctgcgc tcggtcgttc ggctgcggcg
     6601 agcggtatca gctcactcaa aggcggtaat acggttatcc acagaatcag gggataacgc
     6661 aggaaagaac atgtgagcaa aaggccagca aaaggccagg aaccgtaaaa aggccgcgtt
     6721 gctggcgttt ttccataggc tccgcccccc tgacgagcat cacaaaaatc gacgctcaag
     6781 tcagaggtgg cgaaacccga caggactata aagataccag gcgtttcccc ctggaagctc
     6841 cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga tacctgtccg cctttctccc
     6901 ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg tatctcagtt cggtgtaggt
     6961 cgttcgctcc aagctgggct gtgtgcacga accccccgtt cagcccgacc gctgcgcctt
     7021 atccggtaac tatcgtcttg agtccaaccc ggtaagacac gacttatcgc cactggcagc
     7081 agccactggt aacaggatta gcagagcgag gtatgtaggc ggtgctacag agttcttgaa
     7141 gtggtggcct aactacggct acactagaag aacagtattt ggtatctgcg ctctgctgaa
     7201 gccagttacc ttcggaaaaa gagttggtag ctcttgatcc ggcaaacaaa ccaccgctgg
     7261 tagcggtggt ttttttgttt gcaagcagca gattacgcgc agaaaaaaag gatctcaaga
     7321 agatcctttg atcttttcta cggggtctga cgctcagtgg aacgaaaact cacgttaagg
     7381 gattttggtc atgagattat caaaaaggat cttcacctag atccttttaa attaaaaatg
     7441 aagttttaaa tcaatctaaa gtatatatga gtaaacttgg tctgacagtt accaatgctt
     7501 aatcagtgag gcacctatct cagcgatctg tctatttcgt tcatccatag ttgcctgact
     7561 ccccgtcgtg tagataacta cgatacggga gggcttacca tctggcccca gtgctgcaat
     7621 gataccgcga gacccacgct caccggctcc agatttatca gcaataaacc agccagccgg
     7681 aagggccgag cgcagaagtg gtcctgcaac tttatccgcc tccatccagt ctattaattg
     7741 ttgccgggaa gctagagtaa gtagttcgcc agttaatagt ttgcgcaacg ttgttgccat
     7801 tgctacaggc atcgtggtgt cacgctcgtc gtttggtatg gcttcattca gctccggttc
     7861 ccaacgatca aggcgagtta catgatcccc catgttgtgc aaaaaagcgg ttagctcctt
     7921 cggtcctccg atcgttgtca gaagtaagtt ggccgcagtg ttatcactca tggttatggc
     7981 agcactgcat aattctctta ctgtcatgcc atccgtaaga tgcttttctg tgactggtga
     8041 gtactcaacc aagtcattct gagaatagtg tatgcggcga ccgagttgct cttgcccggc
     8101 gtcaatacgg gataataccg cgccacatag cagaacttta aaagtgctca tcattggaaa
     8161 acgttcttcg gggcgaaaac tctcaaggat cttaccgctg ttgagatcca gttcgatgta
     8221 acccactcgt gcacccaact gatcttcagc atcttttact ttcaccagcg tttctgggtg
     8281 agcaaaaaca ggaaggcaaa atgccgcaaa aaagggaata agggcgacac ggaaatgttg
     8341 aatactcata ctcttccttt ttcaatatta ttgaagcatt tatcagggtt attgtctcat
     8401 gagcggatac atatttgaat gtatttagaa aaataaacaa ataggggttc cgcgcacatt
     8461 tccccgaaaa gtgccacctg acgtctaaga aaccattatt atcatgacat taacctataa
     8521 aaataggcgt atcacgaggc cctttcgtct cgcgcgtttc ggtgatgacg gtgaaaacct
     8581 ctgacacatg cagctcccgg agacggtcac agcttgtctg taagcggatg ccgggagcag
     8641 acaagcccgt cagggcgcgt cagcgggtgt tggcgggtgt cggggctggc ttaactatgc
     8701 ggcatcagag cagattgtac tgagagtgca ccatatgcgg tgtgaaatac cgcacagatg
     8761 cgtaaggaga aaataccgca tcaggcgcca ttcgccattc aggctgcgca actgttggga
     8821 agggcgatcg gtgcgggcct cttcgctatt acgccagctg gcgaaagggg gatgtgctgc
     8881 aaggcgatta agttgggtaa cgccagggtt ttcccagtca cgacgttgta aaacgacggc
     8941 cagtgccaag ctg
//
